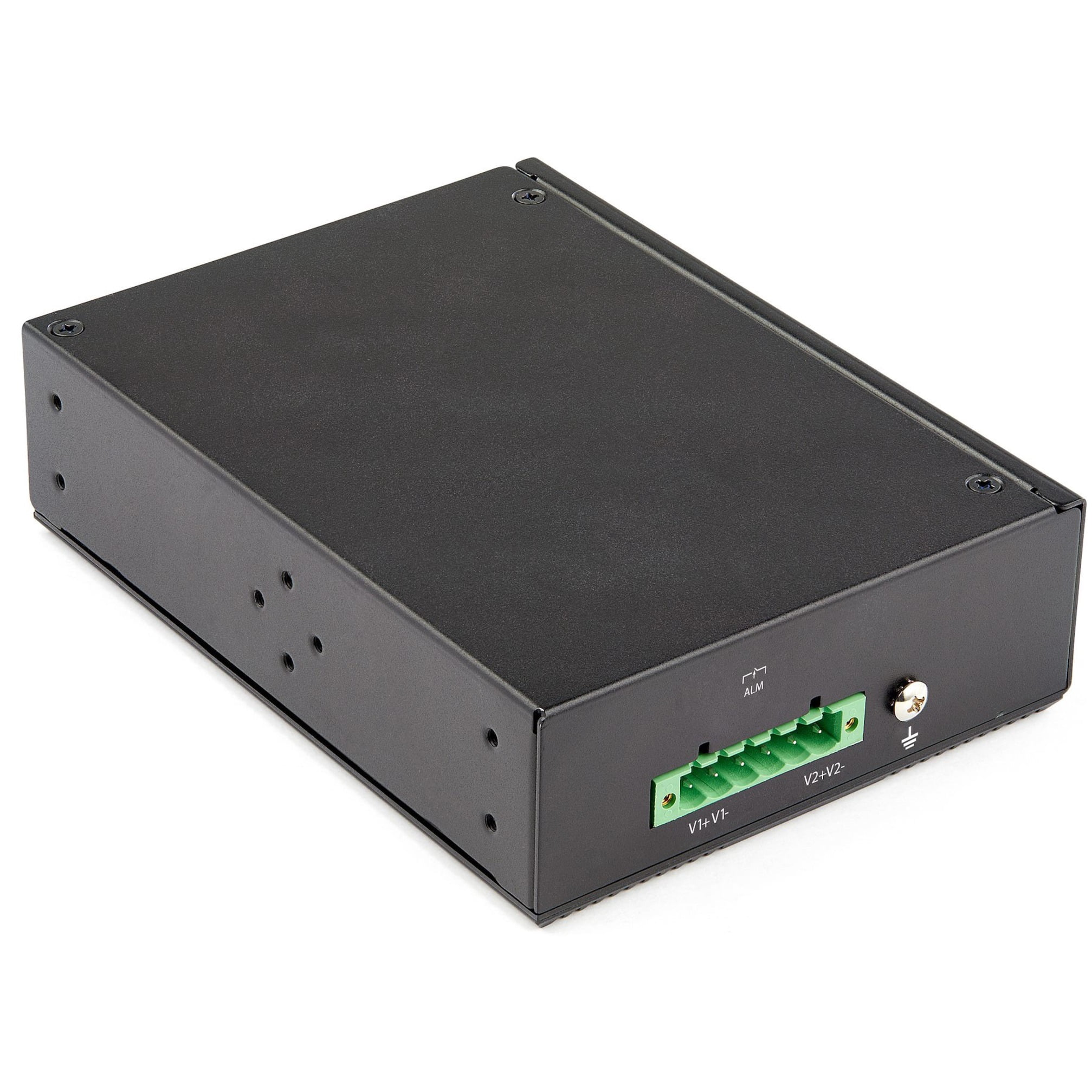

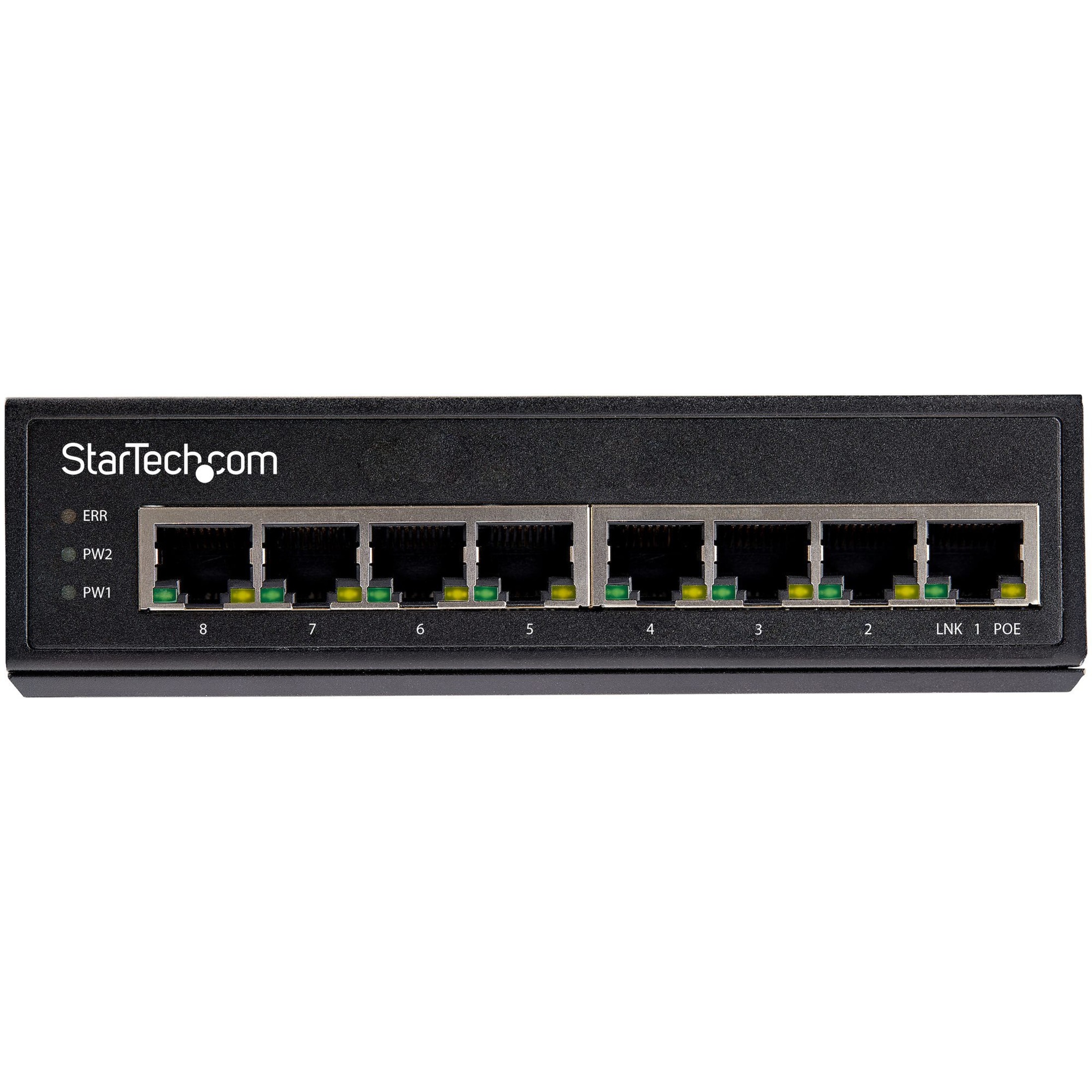

StarTech Industrial 8 Port Gigabit PoE Unmanged Switch IESC1G80UP

<div class="product_header">General Information</div><table class="product_table"><tbody><tr><td class="product_attribute_value" colspan="2"><p>This industrial 8 port gigabit PoE switch features 30W of power and is designed to be installed in harsh environments and supports up to a total of 200W power outputs. Includes hardware for DIN rail or wall mounting.</p> For Demanding Environments Where No Fiber Connections Are Required <p>Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:</p><ul><li>Cameras</li><li>Sensors</li><li>Wi-Fi Access Points</li></ul><p>High total power budget with high PoE port count at a maximum of 30 watts per port, up to 200 watts max. Power provided in order of device connection; max 6 802.3at (30W) devices (180W total) at any time.</p> Truly Industrial for Devices That Must Function Under Harsh Conditions <p>Industrial features include:</p><ul><li>Operating Temperature Range: -40 C to 75 C</li><li>IP-30 rated housing</li><li>Vibration, shock, and free-fall standard testing</li></ul><p>This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 500,000+ hrs (Telcordia/Bellcore) at 50°C, for long-term reliability.</p><p> More from the Manufacturer</p><p>More from the Manufacturer</p></td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Interfaces/Ports</div><table class="product_table"><tbody><tr><td class="product_attribute">Total Number of Network Ports:</td><td class="product_attribute_value">8</td></tr><tr><td class="product_attribute">Network (RJ-45):</td><td class="product_attribute_value">Yes</td></tr><tr><td class="product_attribute">Port/Expansion Slot Details:</td><td class="product_attribute_value">8 x Gigabit Ethernet PoE+</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Media &amp; Performance</div><table class="product_table"><tbody><tr><td class="product_attribute">Media Type Supported:</td><td class="product_attribute_value">Twisted Pair</td></tr><tr><td class="product_attribute">Ethernet Technology:</td><td class="product_attribute_value">Gigabit Ethernet</td></tr><tr><td class="product_attribute">Network Technology:</td><td class="product_attribute_value">10/100/1000Base-T</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Network &amp; Communication</div><table class="product_table"><tbody><tr><td class="product_attribute">Layer Supported:</td><td class="product_attribute_value">2</td></tr><tr><td class="product_attribute">Networking Standards:</td><td class="product_attribute_value">IEEE 802.3x</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Management &amp; Protocols</div><table class="product_table"><tbody><tr><td class="product_attribute">Manageable:</td><td class="product_attribute_value">No</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Power Description</div><table class="product_table"><tbody><tr><td class="product_attribute">PoE (RJ-45) Port:</td><td class="product_attribute_value">Yes</td></tr><tr><td class="product_attribute">PoE Budget:</td><td class="product_attribute_value">200 W</td></tr><tr><td class="product_attribute">Power Source:</td><td class="product_attribute_value">PoE+</td></tr><tr><td class="product_attribute">Power Consumption:</td><td class="product_attribute_value">206 W</td></tr><tr><td class="product_attribute">Plug/Connector Type:</td><td class="product_attribute_value">Terminal Block</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Physical Characteristics</div><table class="product_table"><tbody><tr><td class="product_attribute">Product Material:</td><td class="product_attribute_value">Steel</td></tr><tr><td class="product_attribute">Form Factor:</td><td class="product_attribute_value">DIN Rail Mountable</td></tr><tr><td class="product_attribute">Form Factor:</td><td class="product_attribute_value">Wall Mountable</td></tr><tr><td class="product_attribute">Height:</td><td class="product_attribute_value">1.6"</td></tr><tr><td class="product_attribute">Width:</td><td class="product_attribute_value">4.1"</td></tr><tr><td class="product_attribute">Length:</td><td class="product_attribute_value">5.6"</td></tr><tr><td class="product_attribute">Weight (Approximate):</td><td class="product_attribute_value">1.18 lb</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Miscellaneous</div><table class="product_table"><tbody><tr><td class="product_attribute">Package Contents:</td><td class="product_attribute_value"><ul><li>Ethernet Switch</li><li>Mounting Hardware Kit</li><li>Quick-Start Guide</li><li>Terminal Block</li></ul></td></tr><tr><td class="product_attribute">Country of Origin:</td><td class="product_attribute_value">Taiwan</td></tr><tr><td class="product_attribute">Environmentally Friendly:</td><td class="product_attribute_value">Yes</td></tr><tr><td class="product_attribute">Environmental Compliance:</td><td class="product_attribute_value">Restriction of Hazardous Substances (RoHS)</td></tr><tr><td class="product_attribute">Environmental Compliance:</td><td class="product_attribute_value">Waste Electrical and Electronic Equipment Directive (WEEE)</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Warranty</div><table class="product_table"><tbody><tr><td class="product_attribute">Limited Warranty:</td><td class="product_attribute_value">2 Year</td></tr></tbody></table>

• Ethernet Switch
• Mounting Hardware Kit
• Quick-Start Guide

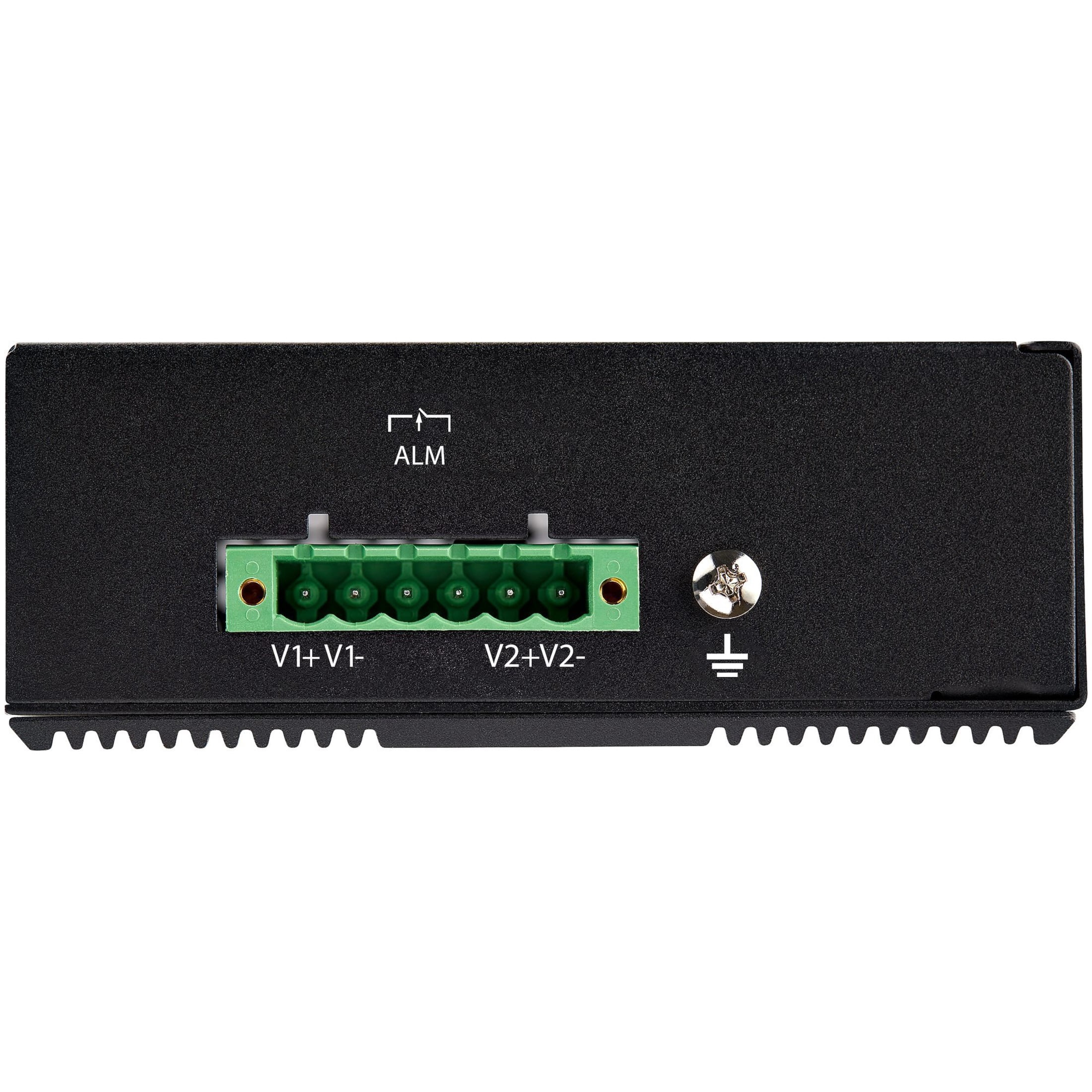

• Terminal Block
• POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) | Use with devices like cameras & access points using Cat 5e/6
• TECH SPECS: 8 port GbE PoE switch | 8 PoE ports | IEEE 802.3af / IEEE 802.3at | 10/100/1000 Mbps | Unmanaged | Error Alarm Relay | Redundant Power Input | Terminal Block Power | 200W power budget
• ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged industrial IP-30 aluminum housing | -40C to 75C hardened operating temp | DIN/Wall Mount
• SKU : 0065030889605
• Condition : NEW
• MPN : IESC1G80UP
