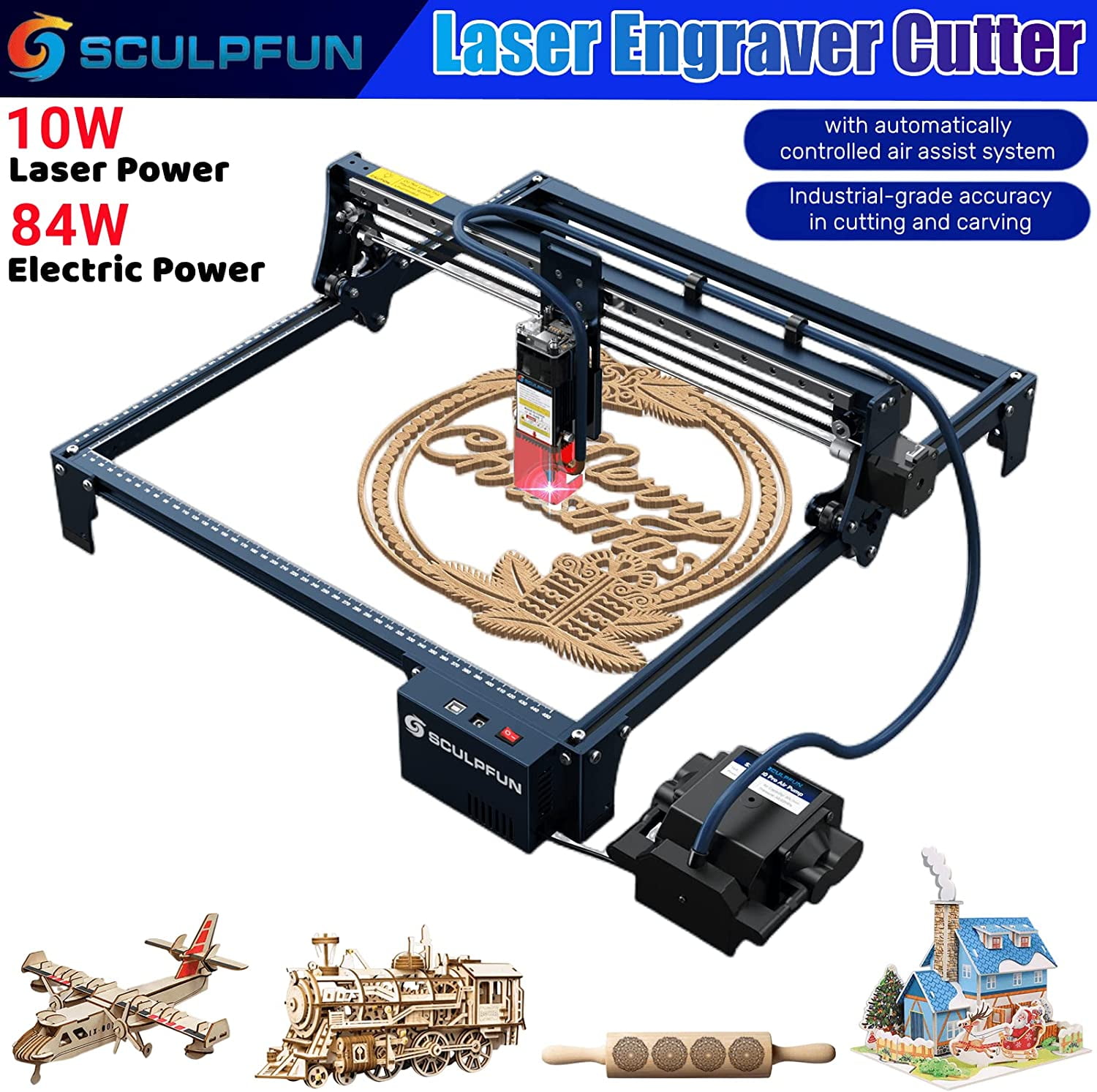

SCULPFUN S30 Pro La/ser Engraver with Auto-Controlled Air Assist System, 84W La/ser Engraving Cutting Machine, 10W Optical Power La/ser Cutter for Home Family DIY, Ultra-Thin Carving

Product Model: SCULPFUN S30 Pro Laser Information: Diode laser output power: 10W (note that this is light energy not electrical energy) Laser focus: 0.06x0.08mm Laser wavelength 455±5nm Focusing method: fixed focus column + sliding device Laser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles. Machine Information: Engraving accuracy: 0.005mm Engraving area size: the standard version is 410*400mm, which can be expanded to 935x400mm or 935x905mm Machine power: about 84W Air pump: Type: mainboard-controlled air pump, voltage 12V, flow 30L/min Air hose inner diameter: 7.5mm Motherboard: 32-bit air-assisted motherboard, reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately) Engraving/cutting materials: Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards Operating software: LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats. Data transmission method: USB connection or Bluetooth wireless connection Power supply: Power Input: 100-240V AC, 50/60HZ Output: 12V 7A Packing weight: 6.85kg Packing size: 62.3*24*22.5cm Certification: CE FCC RoHS FDA ICE certification

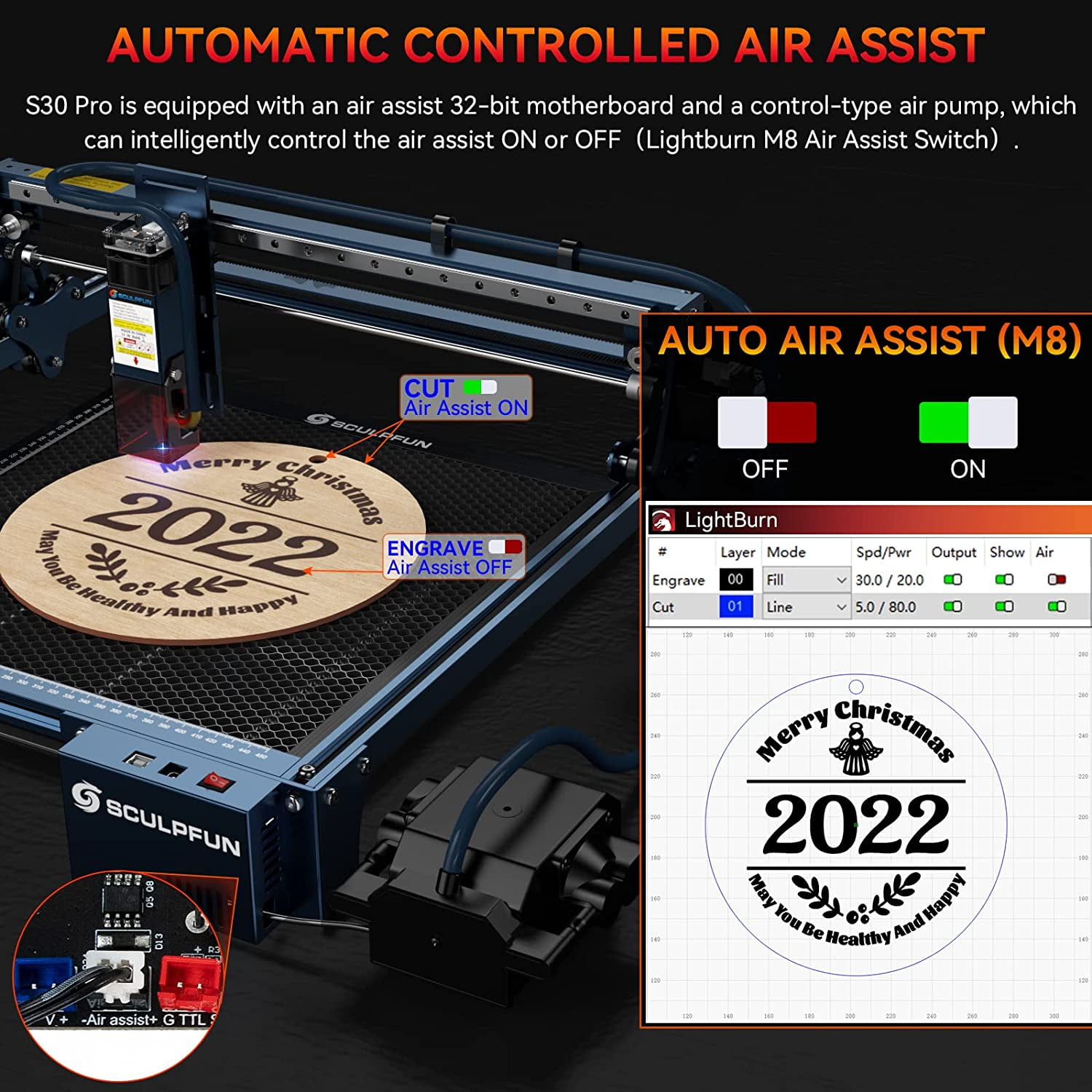

• ▶【Automatically Controlled Air Assist System】 - The traditional air assist kits cannot be controlled during engraving, and the engraved pattern will be smoked into a fuzzy fog. The S30 Pro is equipped with an air assist 32-bit motherboard and a control-type air pump, which can intelligently control the air-assist switch during engraving through the LightBurn software M8 button, this makes the engraving and cutting very clean, and makes the finished works more high-quality.
• ▶【Built-in High Pressure Air Assist Nozzle】 - S30 Pro laser cutting machine is equipped with advanced high-pressure air-assisted metal nozzle, which can generate high-pressure airflow under the air pump, greatly improving the cutting efficiency, and the cutting speed is more than 5 times faster than that without air assistance. The powerful airflow blows away the residue, making the cut surface very clean and smoothy.

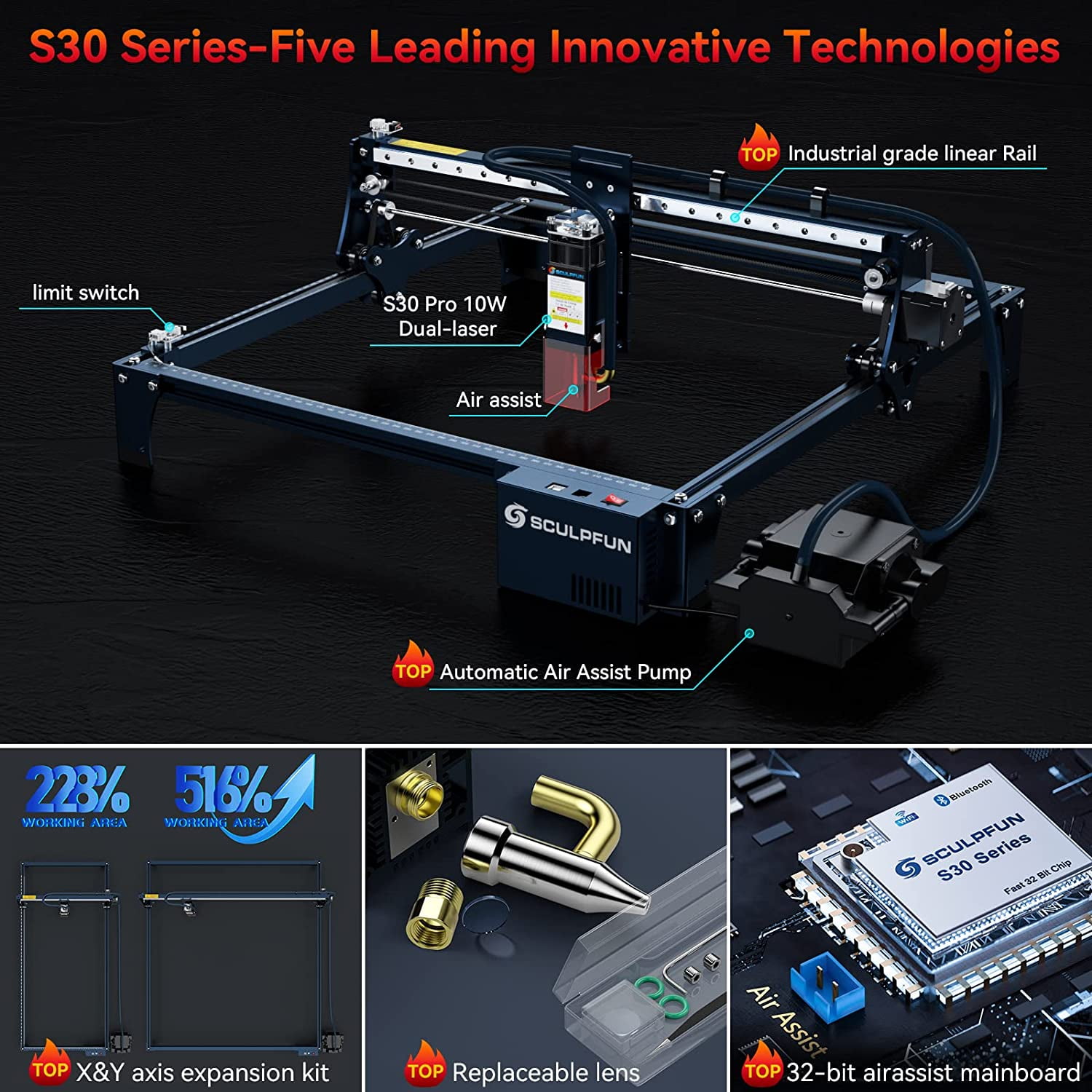

• ▶【High Precision Ultra-thin Linear Rail Engraving】 - S30 Pro laser engraver adopts ultra-thin laser shaping technology, the laser focus is as thin as hair, very powerful for engraving. Besides, the carving machine adopts the most accurate 0.005mm industrial linear guide, which greatly improves the engraving accuracy, and there is no wave line when engraving. When comparing small cutting details, the S30 does not have the wavy pattern that appears in ordinary engraving machines.
• ▶【Industrial-grade One Pass Cutting Accuracy】 - S30 Pro laser cutting machine can easily cut 0-15mm wood and 0-12mm acrylic at one pass with 10W advanced laser power. What's more, supported by air assist system and 32-bit air-assist motherboard, the S30 laser cutter can achieve automatic air-assist control and finer edge cutting, which greatly enhances its cutting speed and cutting quality. The 10W laser of S30 CNC router is suitable for frequent cutting, do everything faster.
• ▶【Replaceable Lens & Expandable Engraving Area】 - S30 Pro laser carver adopts innovative replaceable lens, which greatly improves the service life of the laser, which is more than 10 times longer than other general lasers. When the lens is exhausted, the lens can be replaced. Besides, the primitive engraving area is 410x400mm, but you can buy a Y-axis or XY-axis expansion kit to expand the engraving area to 935x400mm or 935x905mm, which can offer you larger area for engraving or cutting work.
